XP-L HD 6500K 5700K 5000K 4000K 3000K 3A 10W 1095 Lumens SMD 3535 LED
- Product Code : XP-L HD LEDs
- Availability : In Stock
- $3.50
-
$1.99
-
SAVE 43%
Available Options
Related Products
Sale
XP-L High Density LED
| Size | 3.45 x 3.45 x 2.68 mm |
| Maximum Drive Current | 3 A |
| Maximum Power | 10 W |
| Maximum Light Output | 1226 lm White @ 10 W |
| Typical Forward Voltage | 2.95 V @ 1.05 A |
| Viewing Angle | 115 ° |
| Binning | 85°C ANSI |
| Thermal Resistance | 2.2 °C/W |
| Reflow Solderable | Yes - JEDEC J-STD-020C-compatible |
| REACH-Compliant | Yes |
| RoHS-Compliant | Yes |
| Package Size | 3.45 x 3.45 mm |

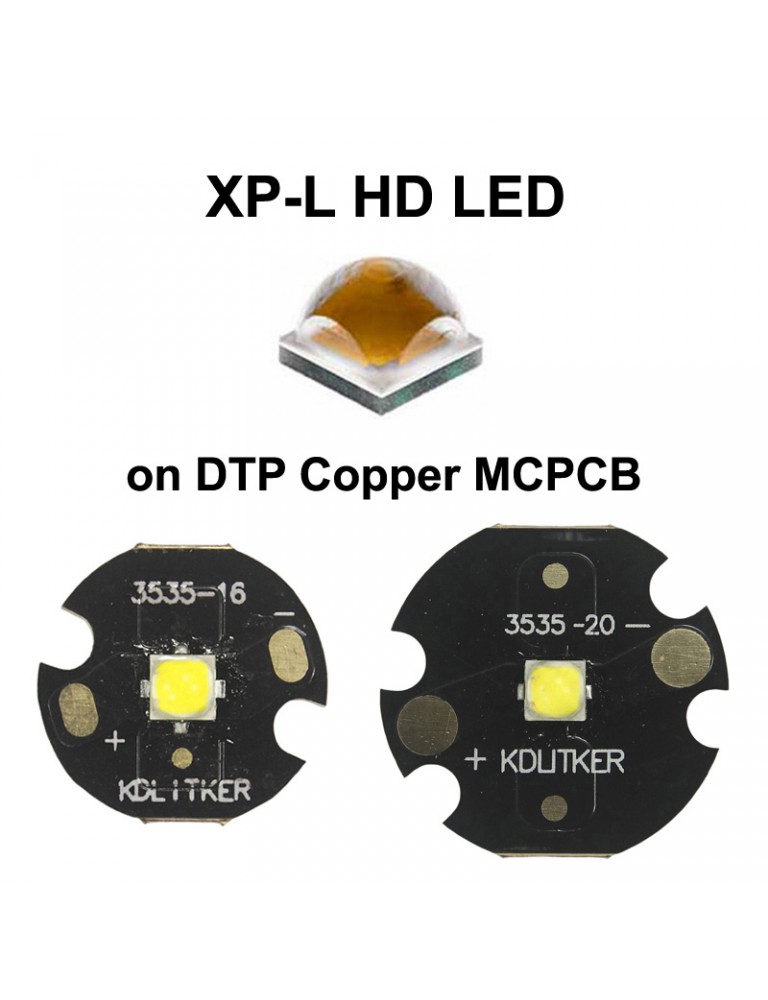

Package Content:
1 x XP-L HD LED
on KDLitker DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LED: |
New XP-L HD W2 1A White 6500K / XP-L HD W2 2B White 5700K / XP-L HD V4 3C Neutral White 5000K / XP-L HD V4 5A3 Neutral White 4000K / XP-L HD U6 7A3 Warm White 3000K (Imported) (Options) |
| Base Plate Dim.: | 10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (options) |
| Weight: | 3g |
| Package Content: | 1 x LED |
