New XP-L HD 6500K 3A 10W 1095 Lumens SMD 3535 LED

New XP-L HD 6500K 3A 10W 1095 Lumens SMD 3535 LED
  • Product Code : New XP-L HD LEDs
  • Availability : In Stock
  • $2.88
  • $1.99

  •    SAVE 31%

  • Buy more and Save more

  • 3 or more $2.70
  • 5 or more $2.64
  • 10 or more $2.58

Available Options

XP-L High Intensity

Industry’s First High-Intensity LED

Size
3.45 x 3.45 mm
Maximum Drive Current
3 A
Maximum Power
10 W
Light Output
up to 1095 lm @ 10 W
Typical Forward Voltage
2.95 V @ 1.05 A
Viewing Angle
125 °
Binning

85°C

ANSI

Thermal Resistance
2.2 °C/W
Reflow Solderable
Yes - JEDEC J-STD-020C-compatible
REACH-Compliant
Yes
RoHS-Compliant
Yes
REACh-Compliant
Yes
UL-Recognized
Yes
(Remarks: General description from official description)

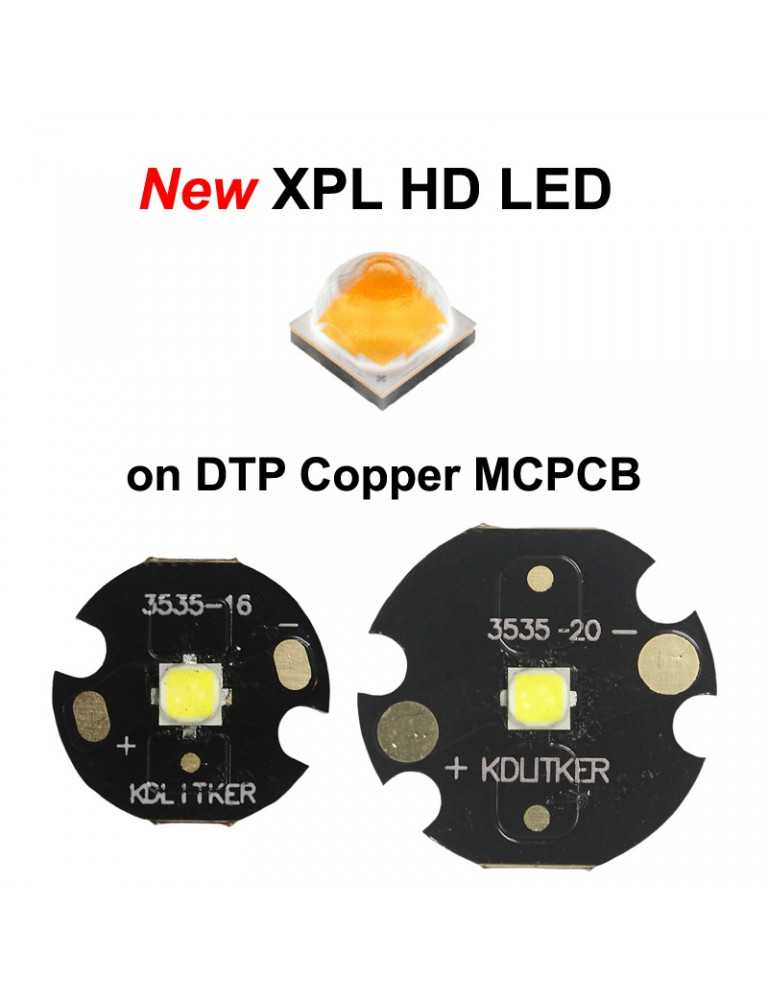

on KDLITKER DTP Copper MCPCB

Product Specifications:

Material:
Copper
LED:

New XP-L HD W2 1A White 6500K

(US Branded)

(Options)

Base Plate Dim.:

10mm (Dia.) x 1.5mm (Thickness) /

16mm (Dia.) x 1.5mm (Thickness) /

20mm (Dia.) x 1.5mm (Thickness)

(options)

Weight:
5g
Package Content:
1 x LED
