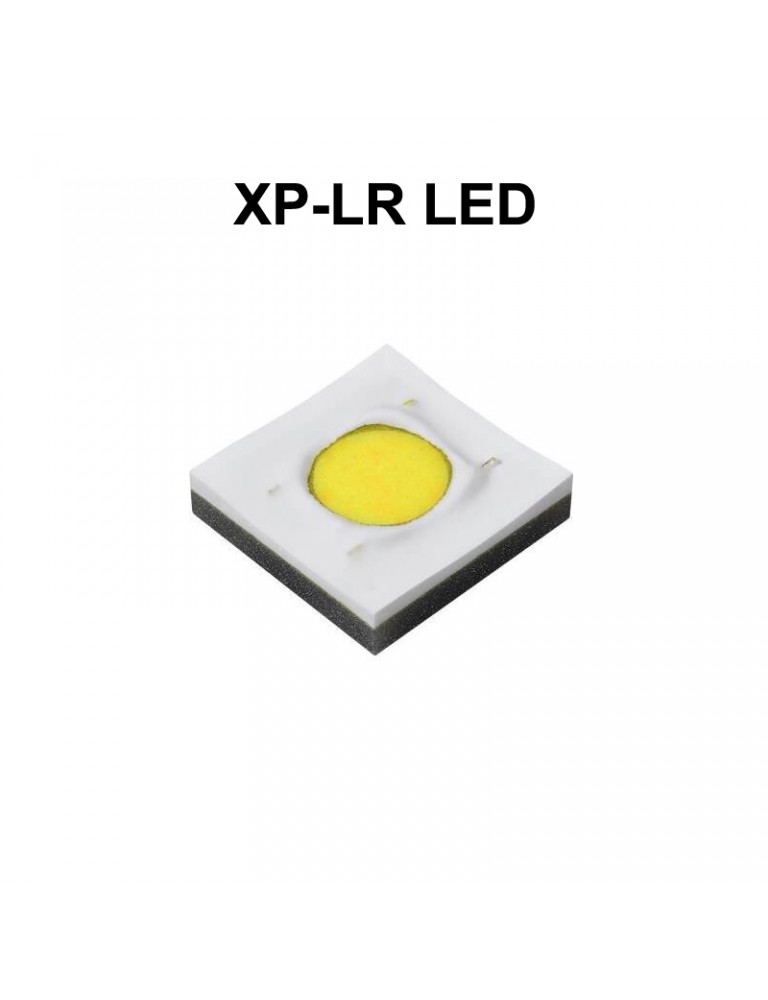

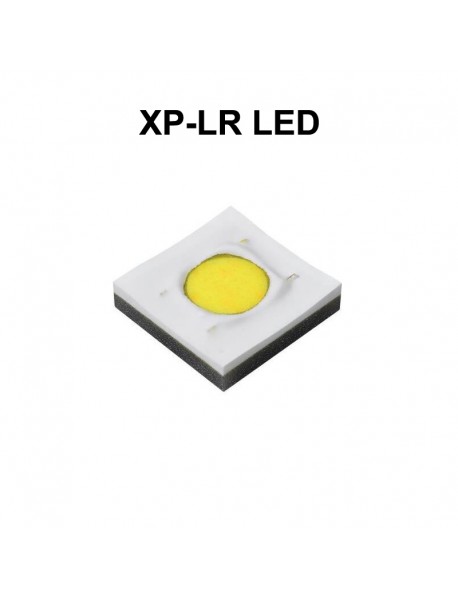

XP-LR 3V 6A 22W 1629 Lumens 6500K SMD 3535 LED
- Product Code : XP-LR LEDs
- Availability : In Stock
-
$5.14
Available Options
Descriptions
XP-LR LEDs expand the XP-L product family with a round, circular light-emitting surface (LES) version that improves the quality of projected light through optics, compared to traditional LEDs with a square LES. The bottom of the XP-LR maintains the same dimensions and footprint as all other XP LEDs, so it is an easy upgrade path for XP-based designs.
The compact and proven 3.45-mm XP platform has an excellent ecosystem of optics and system solutions available, enabling lighting manufacturers to simplify their design process and shorten time-to-market.
XP-LR LEDs are optimized for directional portable lighting applications where the best possible beam quality is required.
CHARACTERISTICS
| Thermal resistance, junction to solder point | 0.8°C/W |
| Viewing angle | 120 degrees |
| DC forward current | 6000 mA |
| Forward voltage | Typ. 3.0 V Max. 3.2 V |
| LED junction temperature | Typ. 85 °C Max. 150 °C |
(Remarks: General description from official description)
Package Content:
1 x XP-LR LED
on KDLitker DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LED: | XP-LR F4 1D White 6500K (Imported, US) (Options) |
| Base Plate Dim.: | 10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (Options) |
| Weight: | 5g |
| Package Content: | 1 x LED |
