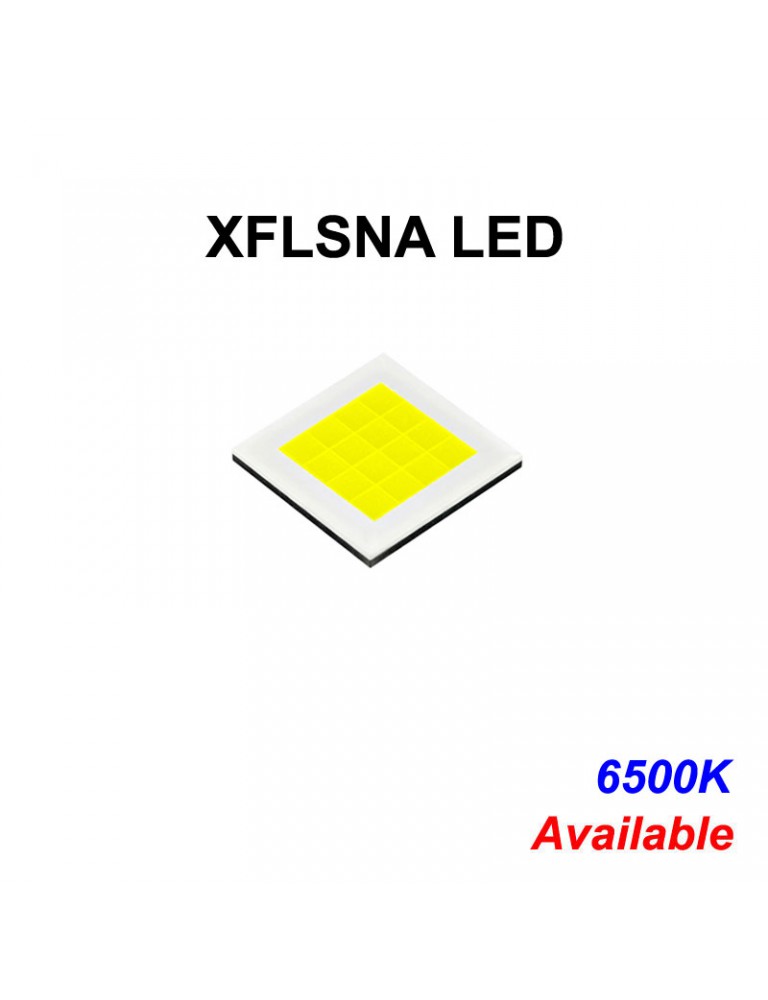

XFLSNA 3V 69W 20A 6500K SMD 7070 LED
- Product Code : XFLSNA LEDs
- Availability : In Stock
-
$5.38
Available Options
Product Description:
XFLSNA LEDs are fully optimized for flashlights and other portable lighting applications in terms of light output, optical performance and value. The XFLSNA LED is offered as a high intensity option to deliver maximum candela through secondary optics.
XFL LEDs are optimized for high‑output flashlight and other portable lighting applications.
Product Specifications:
| Package Dimensions (mm) | 7.0 x 7.0 |
| Product Configuration | 3V / 6V (configurable by PCB layout) |
| Max Current | 3V: 30A 6V: 10A |
| Max Lumens | 7161 lm |
| Max Power | 69 W |
| Thermal Resistance | 0.3 Degree / W |
| Viewing Angle | 120-Degree |
(Remarks: General description from official description)
Package Content:
1 x XFLSNA LEDs
on KDLitker DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LEDs: | XFLSNA 1A White 6500K (Imported) (Options) |
| Base Plate Dim.: | 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (Options) |
| Weight: | 5g |
