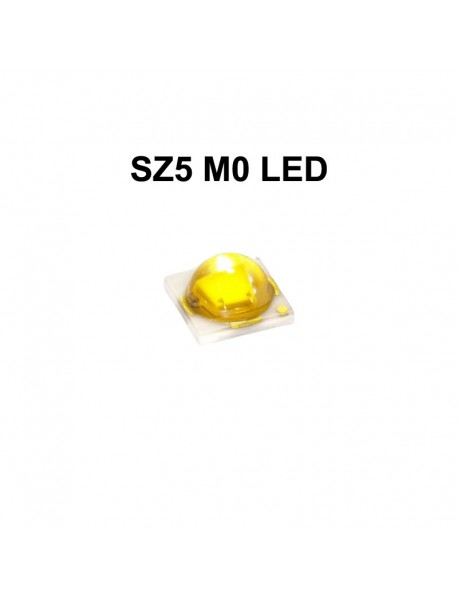

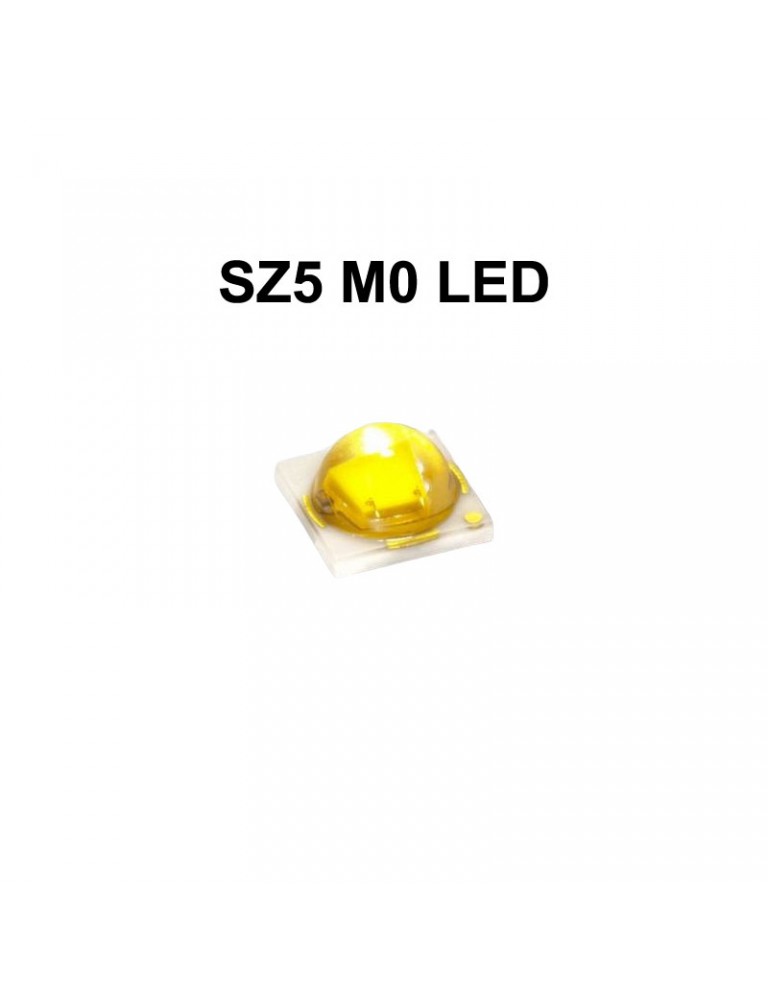

SZ5 M0 5.22W 3V 1500mA 6000K 5000K 4000K SMD 3535 LED
- Product Code : SZ5 M0 LEDs
- Availability : In Stock
- $2.52
-
$1.49
-
SAVE 41%
Available Options
Product Description
The Z-Power series is designed for high current operation and high flux output applications. It incorporates state of the art SMD design and low thermal resistant material. The Z Power LED is ideal light sources for general illumination applications, custom designed solutions, automotive, large backlights and high performance torches.
Features and Benefits
- Super high Flux output and high Luminance
- Designed for high current operation
- SMT solderable
- Lead Free product
- RoHS compliant
Key Applications
- Automotive interior / exterior lighting
- Automotive forward lighting
- General Torch
- Architectural lighting
- Projector light source
- Task lighting
- Decorative / Pathway lighting
- Remote / Solar powered lighting
Product Specifications:
| Forward Current: | 1500mA |
| Forward Voltage: | 3.2V |
| Viewing angle: | 120-Degree |
| Operating Temperature: | - 40 Degree to 85 Degree |
| Storage Temperature: | - 40 Degree to 100 Degree |
| Junction Temperature: | 145 Degree |
| Real thermal resistance junction/solderpoint: | 5.8 K / W |
(Remarks: General description from official description)
on KDLitker DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LED: | SZ5 M0 White 6000K / SZ5 M0 Neutral White 5000K CRI80 / SZ5 M0 Neutral White 4000K CRI80 (Imported) (Options) |
| Base Plate Dim.: | 10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (Options) |
| Weight: | 5g |
