Features

SFT white series is a powerful light source for beam pattern critical lighting applications. With advanced chip and packaging technologies, SFT-42R-WES maximizes the Candela/Lumen K-Factor for high optical performance in directional lighting:

- A patented round emitter, in comparison with a square emitter, enables better uniformity and higher intensity in beam spots.

- The vertical chip with high lumen density enables high intensity, long beam distance and narrow beam angles.

- A flat window, in comparison with a domed cover, allows the optics to be closer to the emitter to achieve higher intensity and high precision in beam patterns

In addition, SFT phosphor-on-chip technology’s high uniformity of color over radiation angle enables superior beam spot light quality.

- Package Size: 5050

- Maximum Drive Current: 11 A

- Color Temperature: 5000K, 5700K, 6500K

- Color Rendering Index: Typ. 73 (5000K, 5700K), Typ.70 (6500K)

- Low thermal resistance: 0.7 °C/W

- ANSI-compatible chromaticity bins

- Electrically isolated thermal path

- 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001

Applications

- Portable Lights

- Bicycle Lights

- Automotive Auxiliary Lights

- LED Work Lights

- Outdoor and Roadway Lighting

- High Bay Industrial Lighting

- Entertainment Lighting

- Directional Light Fixtures

(Remarks: General description from official description)

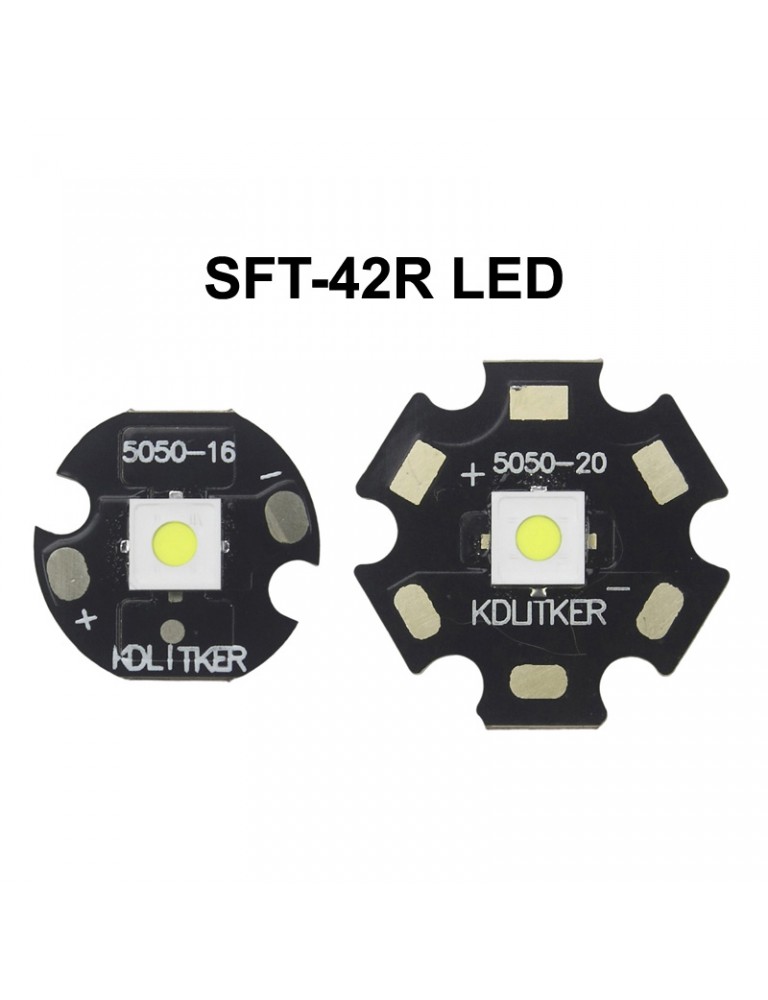

on KDLITKER DTP Copper MCPCB

Product Specifications:
