Features:

SFT white series is a powerful light source for beam pattern critical lighting applications. The flat window of an SFT white LED results in a much smaller light emitting surface than a dome-shaped cover, enabling smaller optics and higher optical efficiency in directional lighting systems.

- Vertical chip with high lumen density and small emitting angle, ideal for efficient optical beam shaping to achieve high intensity, narrow beam angle and long beam distance.

- Phosphor-on-chip with superior color uniformity over radiation angles, delivering homogeneous color in beam spots.

- Maximum Drive Current:

8 A: 6500K, 5700K, 5000K /

4 A: 3000K CRI95, 2700K CRI95  (Options)

- Color Temperature: 6500K, 5700K, 5000K, 2700K, 3000K, 4000K (Options)

- Color Rendering Index:

Min. 70 (5000K, 5700K), Typ. 70 (6500K) /

Min. 95: 3000K, 2700K (Options)

- Low thermal resistance: 0.7°C/W

- Electrically isolated thermal path

- 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001

Applications:

Flash lights

Automotive accessory spotlights

Portable lighting accessories

Instrumentation

Work Lights

Battery and solar-powered applications

(Remarks: General description from official description)

Package Content:

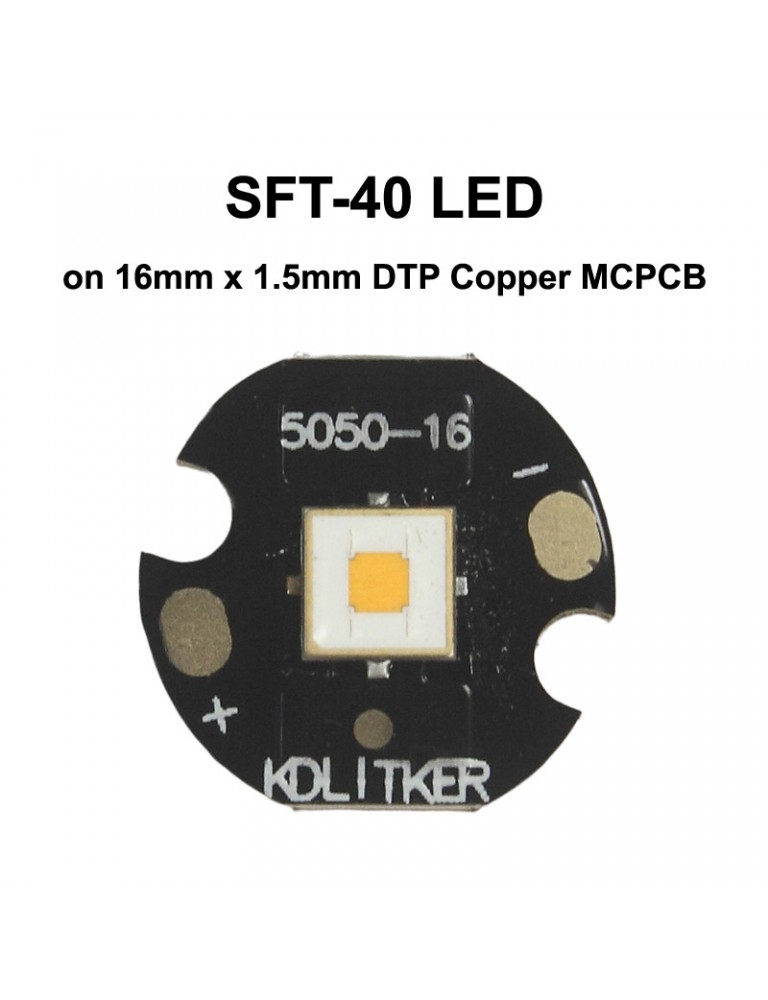

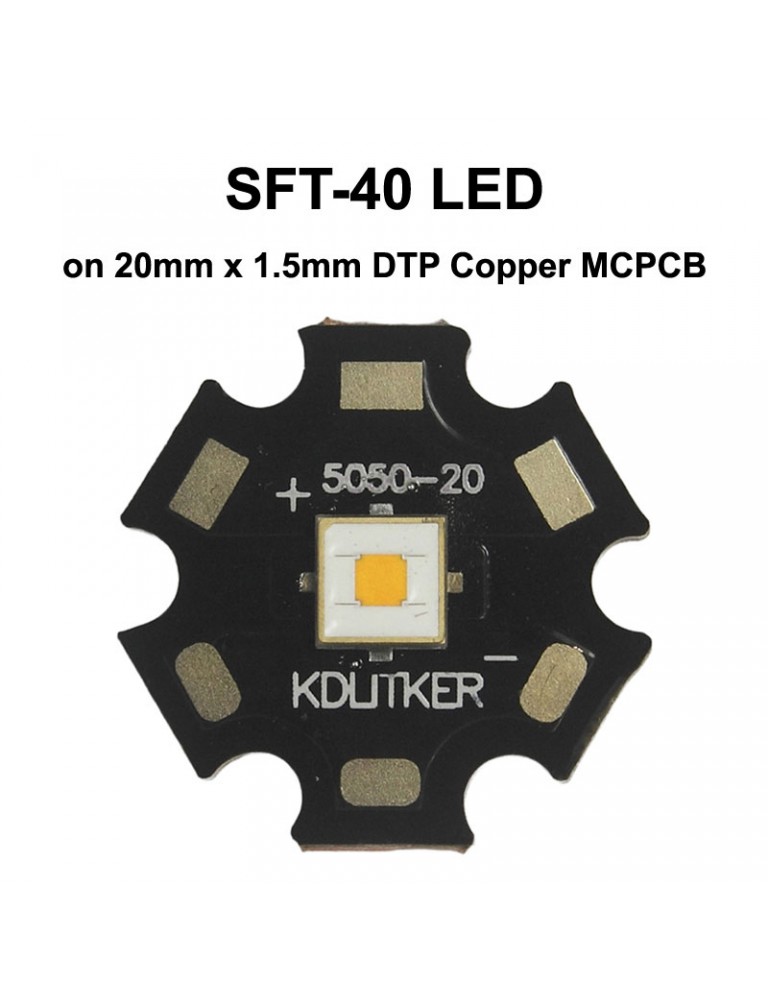

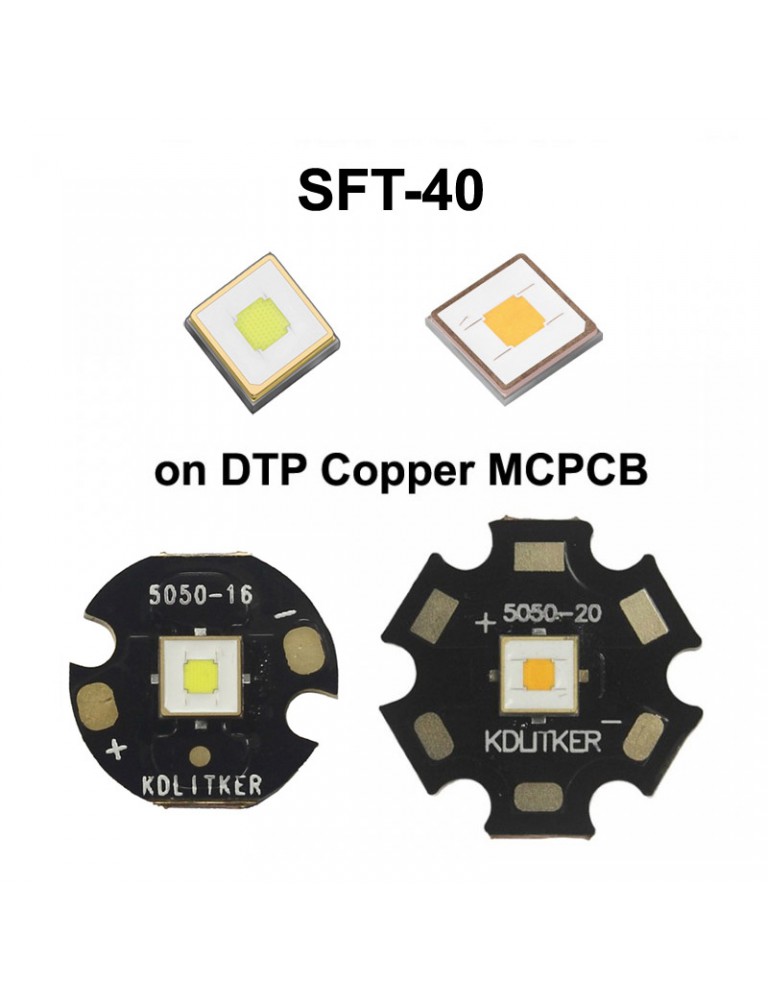

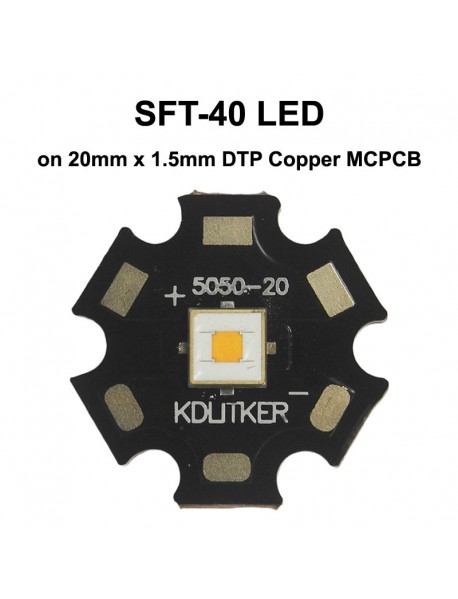

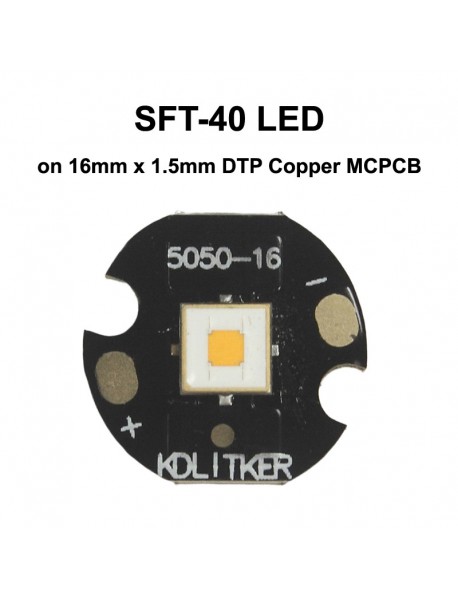

1 x SFT-40 LED

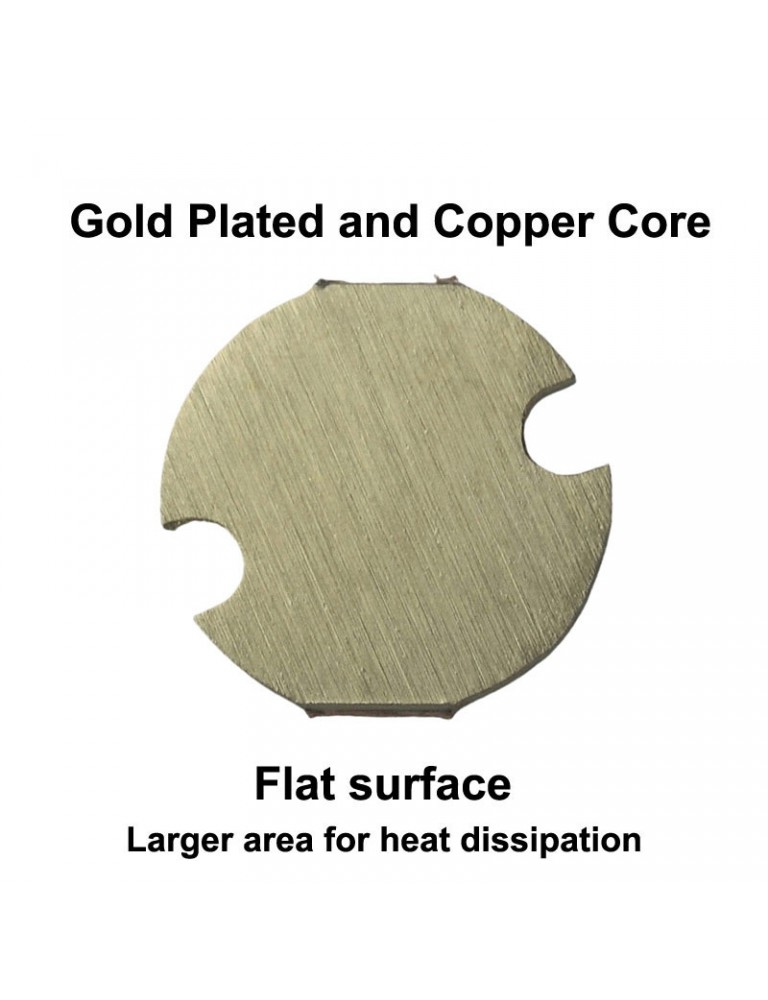

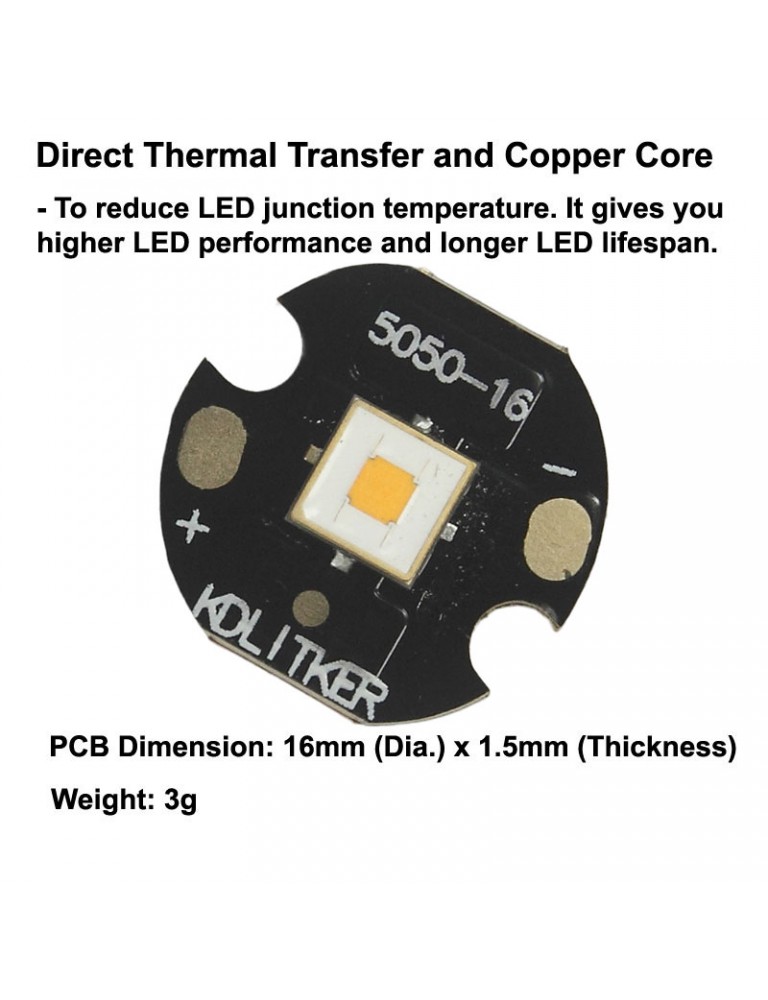

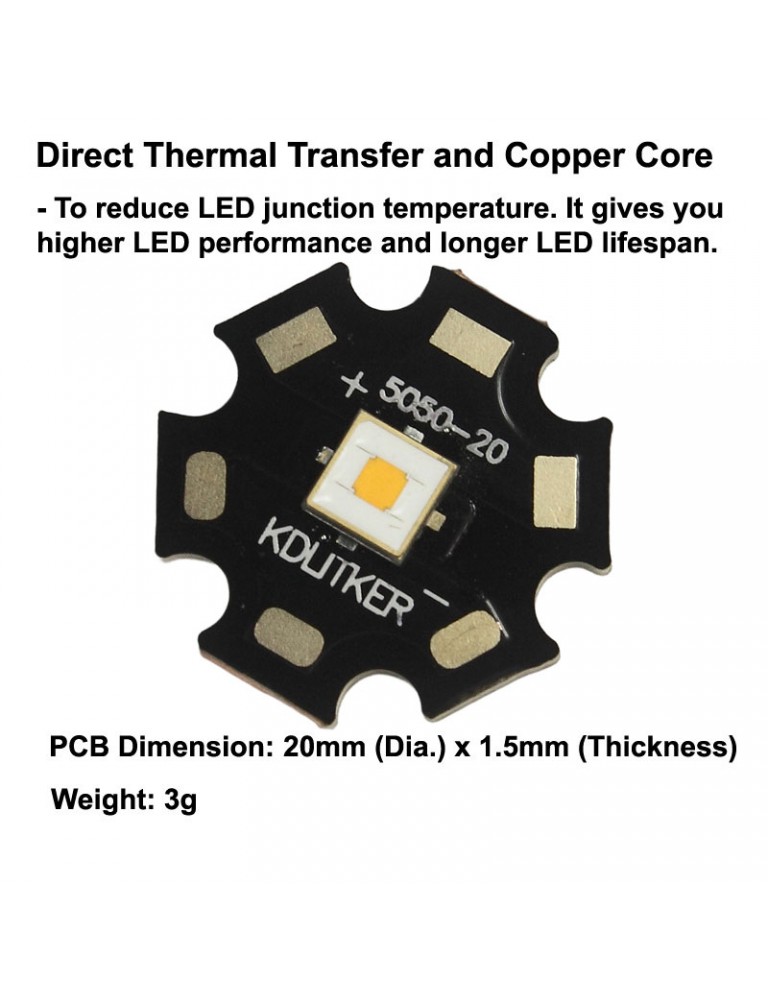

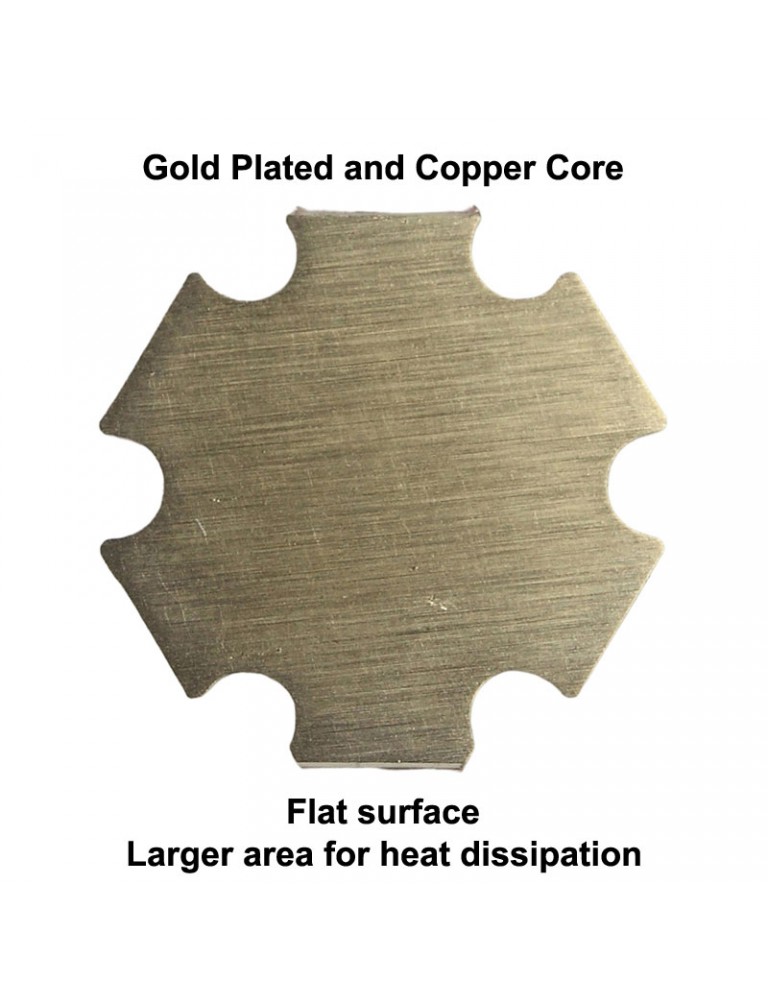

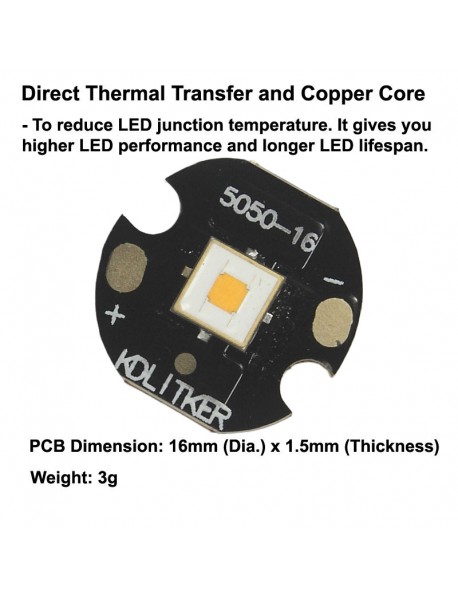

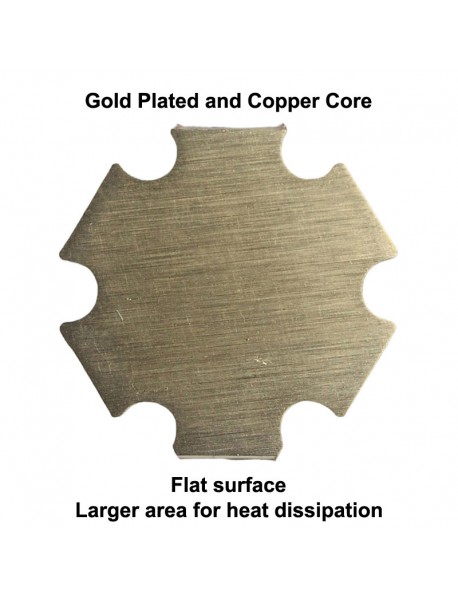

on KDLitker DTP Copper MCPCB

Product Specifications:
