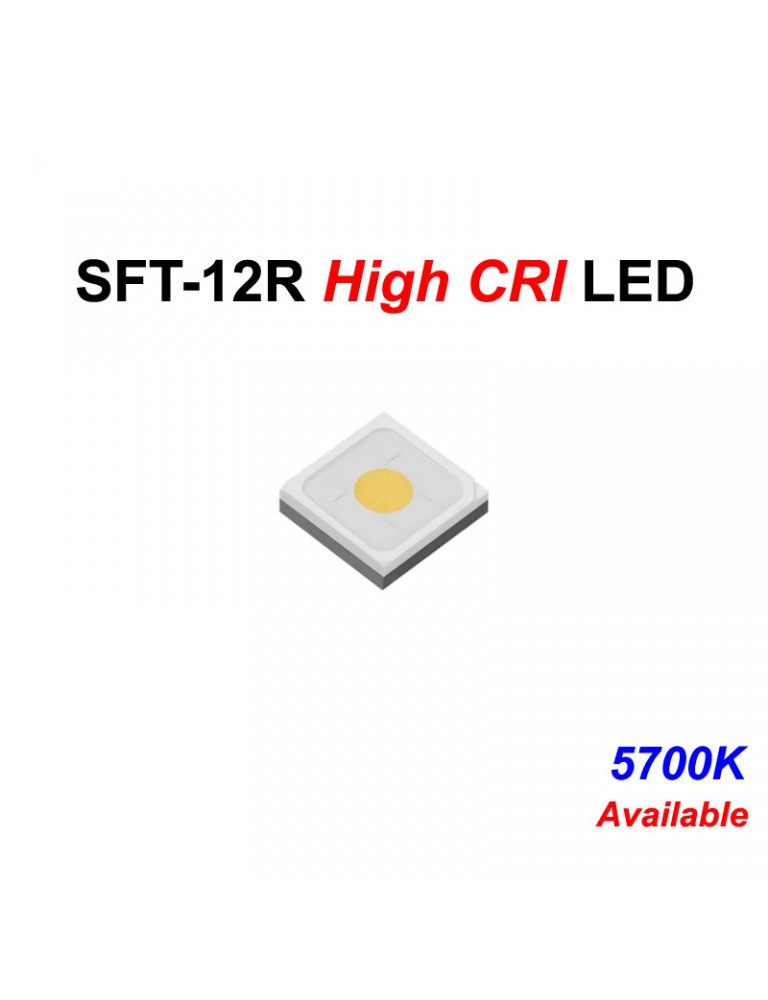

SFT-12R 5700K High CRI SMD 3535 LED
- Product Code : SFT-12R High CRI LEDs
- Availability : In Stock
- $4.78
-
$2.79
-
SAVE 42%
Available Options
Sale
Features:
- A small emitter enables high intensity, long beam distance and small optics.
- A patented round emitter, in comparison with a square emitter, enables better uniformity and higher intensity in beam spots.
- A flat window, in comparison with a domed cover, allows the optics to be closer to the emitter to achieve higher intensity and longer beam distance
- Package Size: 3535
- Maximum Drive Current: 3 A
- Color Temperature: 2700K - 5700K
- Color Rendering Index: > 90
- Low thermal resistance: 1.7°C/W
- ANSI-compatible chromaticity bins
- Electrically isolated thermal path
- 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
(Remarks: General description from official description)
Package Content:
1 x SFT-12R High CRI LED
on KDLITKER DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LED: | SFT-12R C6 CA White 5700K CRI90 (Imported) (Options) |
| Dimension: | 10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (Options) |
| Weight: | 5g |
| Package Content: | 1 x LED |
