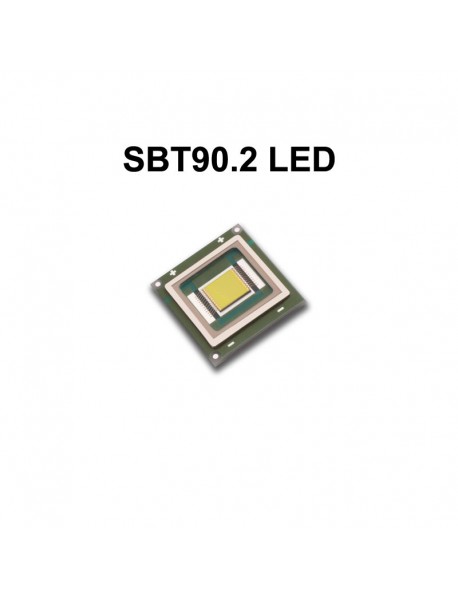

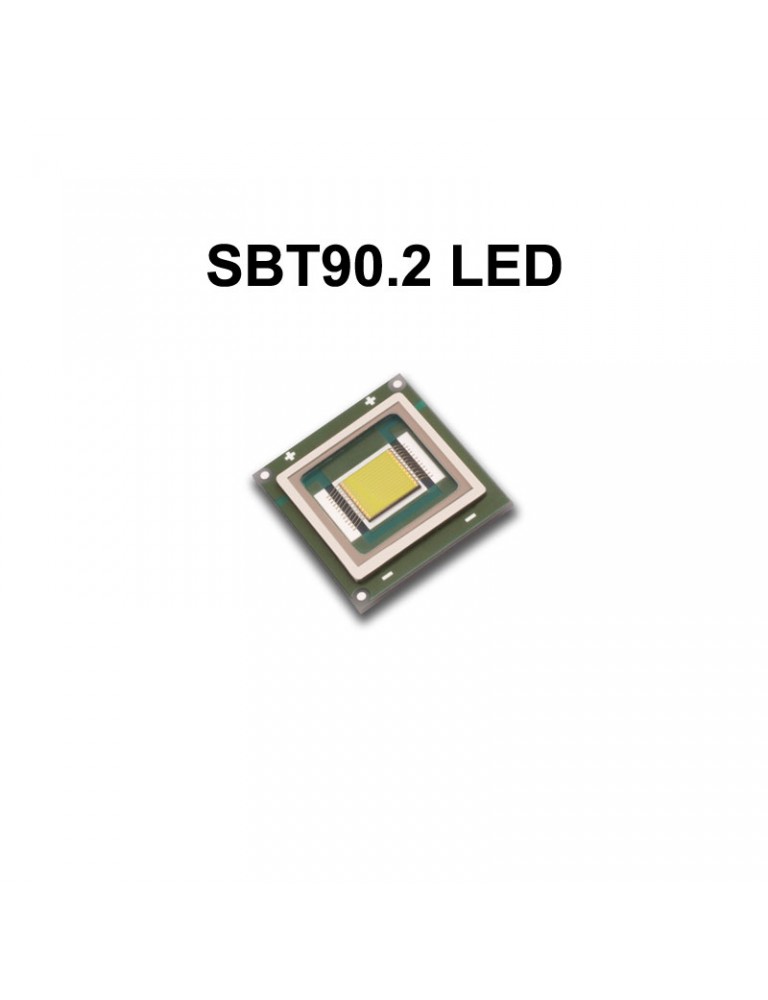

SBT-90.2 68W 3V 18A 5400 Lumens 6500K 5700K SMD 9090 LED

SBT-90.2 68W 3V 18A 5400 Lumens 6500K 5700K SMD 9090 LED
  • Product Code : SBT-90.2 LEDs
  • Availability : In Stock
  • $40.58
  • $25.99

  •    SAVE 36%

Available Options

Features

- Large, monolithic chip with uniform emitting area of 9 mm2

- Extremely high optical output: up to 5,400 lumens at 18 A from a single chip

- Un-encapsulated die ideal for optical coupling in Etendue-limited applications

- 5700K typical color temperature

- High thermal conductivity package - junction to case thermal resistance of only 0.35°C/W

- Compact 10 x 11 mm2 isolated surface mount package


Applications

- Fiber-coupled Illumination

- Architectural and Entertainment Lighting

- Beacons

- Search lights

- Tactical portable lighting

- Automotive after-market / Tuning spotlights

(Remarks: General description from official description)


on KDLITKER DTP Copper MCPCB

Product Specifications:

Material:
Copper
LEDs:

SBT90.2 White 6500K /

SBT90.2 White 5700K

(Imported)

(Options)

Base Plate Dim.:

20mm (Dia.) x 1.5mm (Thickness)

(Options)

Weight:
5g
