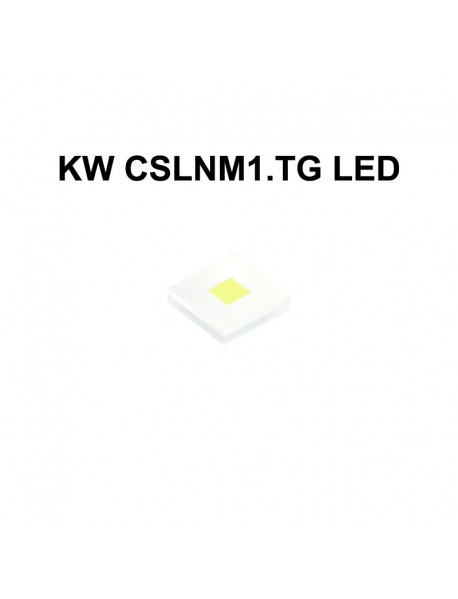

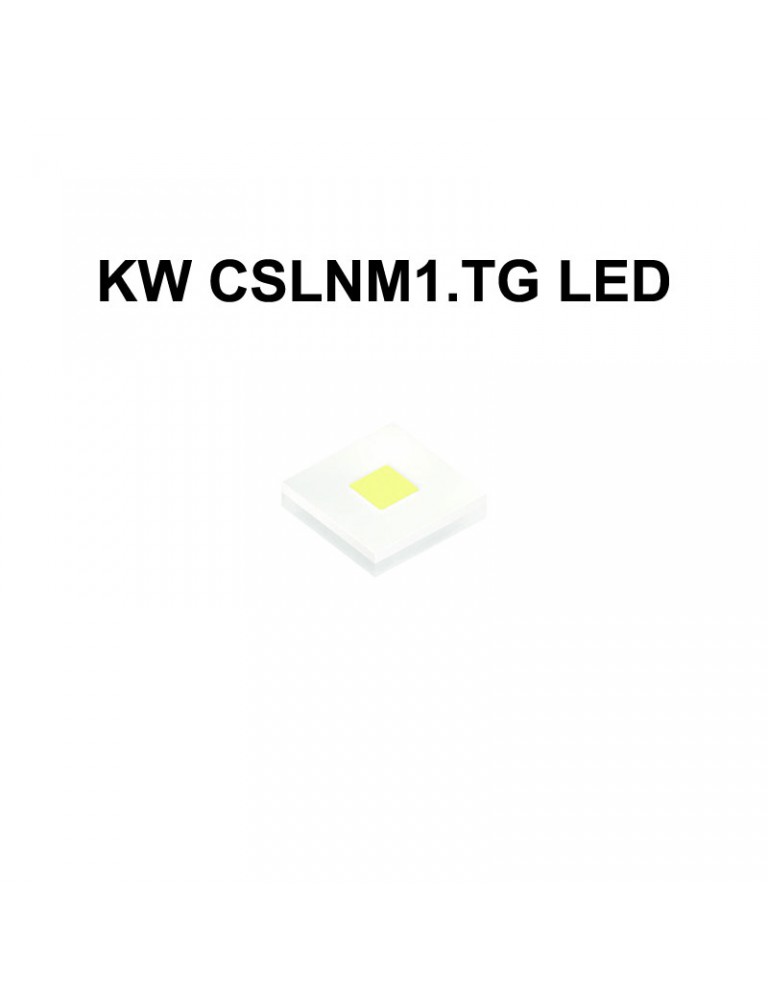

KW CSLNM1.TG 3V 3A White SMD 3030 LED
- Product Code : KW CSLNM1.TG White LED
- Availability : In Stock
- $5.39
-
$1.99
-
SAVE 63%
Available Options
Related Products
Applications
- Stage Lighting (LED & Laser)
Features:
- Package: white molded SMD ceramic package
- Chip technology: UX:3
- Typ. Radiation: 120 Degree (Lambertian emitter)
- Color: Cx = 0.32, Cy = 0.33 acc. to CIE 1931 ( white)
- Corrosion Robustness Class: 3B
- ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Product Specifications:
| Operating Temperature | - 40 Degree to 125 Degree |
| Storage Temperature | - 40 Degree to 125 Degree |
| Junction Temperature | 150 Degree |
| Forward Current | min. 40mA max. 3000mA |
| Forward Voltage | min. 2.75V max. 3.5V |
| Viewing angle | 120 Degree |
| Real thermal resistance junction/solderpoint | typ. 4.1 K / W max. 4.9 K /W |
(Remarks: General description from official description)
on KDLitker DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LED: | KW CSLNM1.TG 6N-EBZB46-65 White (Imported) (Options) |
| Base Plate Dim.: | 14mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (Options) |
| Weight: | 5g |
