HL4X 15W 3V 4A 6500K SMD 3535 LED

HL4X 15W 3V 4A 6500K SMD 3535 LED
  • Product Code : HL4X LEDs
  • Availability : In Stock
  • $3.45

  • Buy more and Save more

  • 3 or more $3.34
  • 5 or more $3.27
  • 10 or more $3.19

Available Options

HL4X is a specially designed high-power domed emitter suitable for outdoor and industrial applications like streetlights and high bay luminaires.


HL4X provides maximum lumen outputs, and overall system efficacy in an industry standard 3535 package with 3-stripe footprint. With plenty of light coming from a small LES device and an ability to sustain high drive currents, it is perfect for cost efficient single optic, directional fixture designs.


FEATURES & BENEFITS

- High lumens per emitter

- Ability to drive at high maximum current

- Industry standard 3535 package with 3-stripe footprint, suitable for existing designs with higher efficacy requirements

- Special materials selection enables long lasting reliability in harsh environments


APPLICATIONS

- Outdoor High Mast

- Floodlights

- Spotlights

- High Bay / Low Bay

- Torch


Parameters

DC Forward Current
4A
DC Forward Voltage2.7V - 3.1V
LED Junction Temperature (DC and Pulse)
120 degree
ESD Sensitivity

≤8000V Human Body Model (HBM) Class 3B JS-001-2012

<400V Machine Model (MM) Class B JESD22-A115-B

Operating Case Temperature
-40 degree to 135 degree
LED Storage Temperature
-40 degree to 135 degree
Soldering Temperature
JEDEC 020c 260 degree
Allowable Reflow Cycles
3

(Remarks: General description from official description)

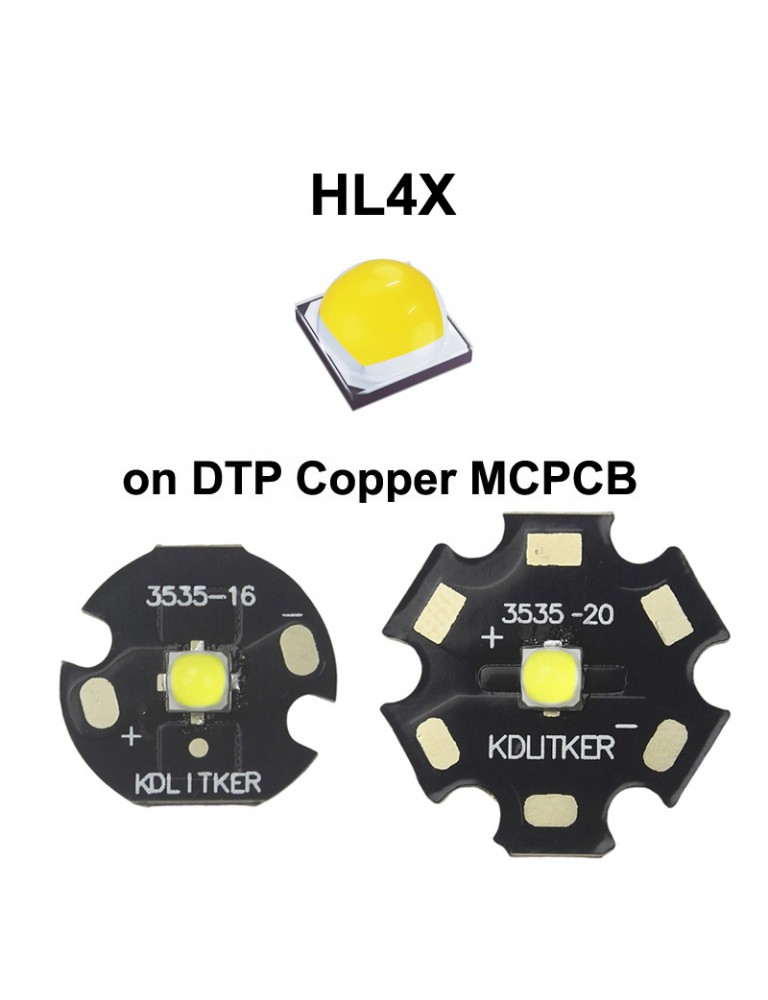

Package Content:

1 x HL4X LED


on KDLitker DTP Copper MCPCB

Product Specifications:

Material:
Copper
LED:

HL4X White 6500K

(Imported)

(Options)

Base Plate Dim.:

10mm (Dia.) x 1.5mm (Thickness) /

16mm (Dia.) x 1.5mm (Thickness) /

20mm (Dia.) x 1.5mm (Thickness)

(Options)

Weight:
5g
Package Content:
1 x LED
