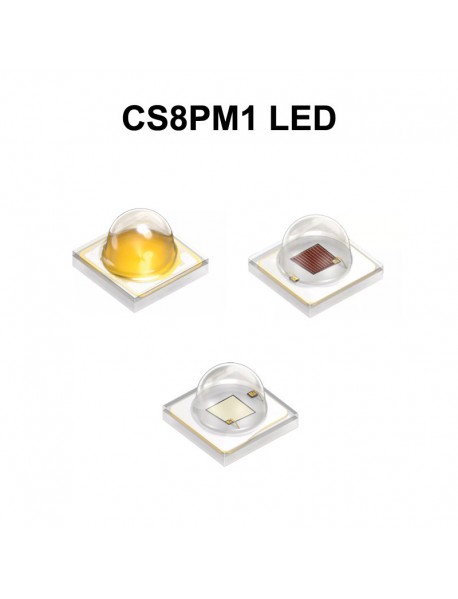

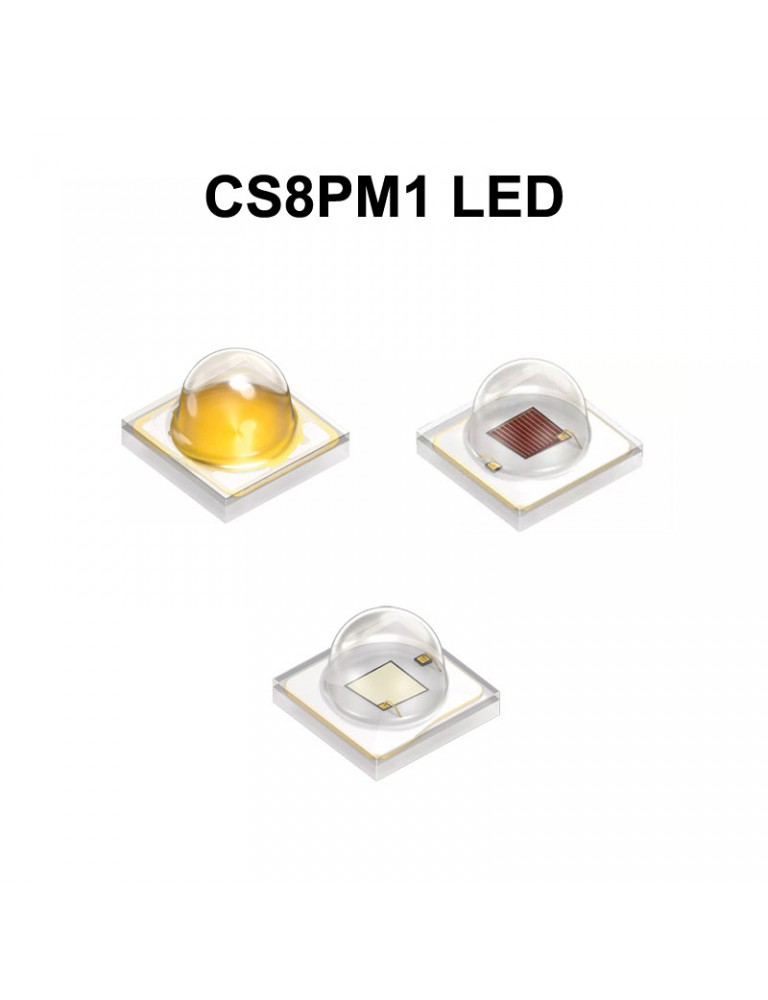

CS8PM1 3.2V 2A 6500K 4000K 3000K RGB SMD 3030 LED
- Product Code : CS8PM1 LEDs
- Availability : In Stock
- $3.31
-
$1.49
-
SAVE 55%
Available Options
Applications
- Entertainment
- Indoor Lighting
- Outdoor & Industrial Lighting
Features
- Package: SMD ceramic package with silicone lens
- Typ. Radiation: 80° (Lambertian emitter)
- Color temperature: 3000K - 6500K, Red, Green, Blue, Red (660nm)
- CRI: 70 (min.), 72 (typ.), R9: -40 (min.)
Product Specifications:
| Operating Temperature | -40 to 125 Degree |
| Storage Temperature | -40 to 125 Degree |
| Forward Current | min. 100mA max. 1800mA Surge Current: 2000mA |
| Forward Voltage | min. 2.70 V typ. 2.81 V max. 3.20 V |
(Remarks: General description from official description)
Package Content:
1 x CS8PM1 LED
on KDLITKER DTP Copper MCPCB
Product Specifications:
| Material: | Copper |
| LEDs: | GW CS8PM1.PM White 6500K LED / GW CS8PM1.PM Neutral White 4000K LED / GW CS8PM1.PM Warm White 3000K LED / GR CS8PM1.23 Red 630nm / GT CS8PM1.13 Green 545nm / GB CS8PM1.13 Blue 450nm / GH CS8PM1.24 Red 660nm / (Imported) (Options) |
| Base Plate Dim.: | 14mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (Options) |
| Weight: | 5g |
